Engineering Precision, Remotely Deployed
Acentech’s remote noise and vibration monitoring systems offer high-fidelity, real-time data acquisition for both noise and vibration, customizable for each complex environment and unique project needs.
Below, we outline the technical specifications and integration capabilities of our systems.
Sensor Types

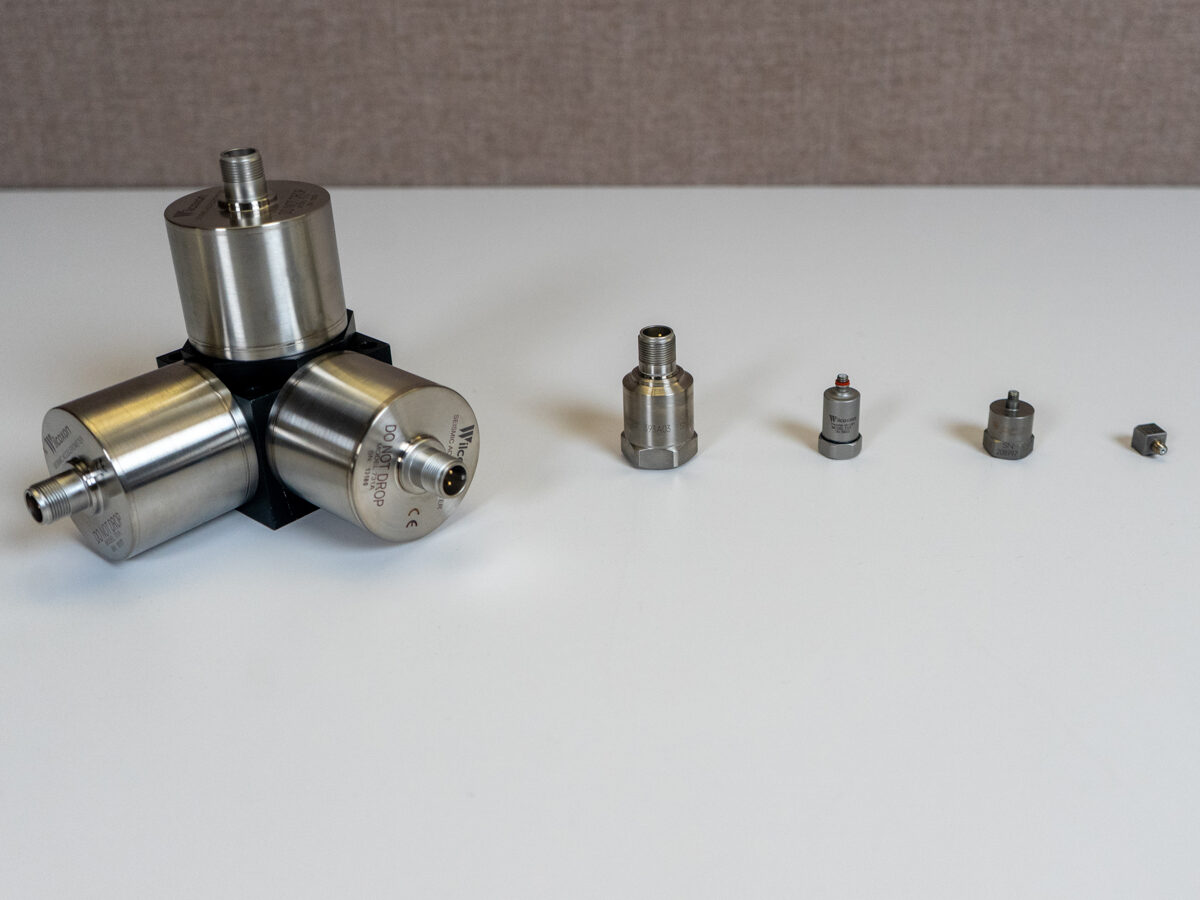

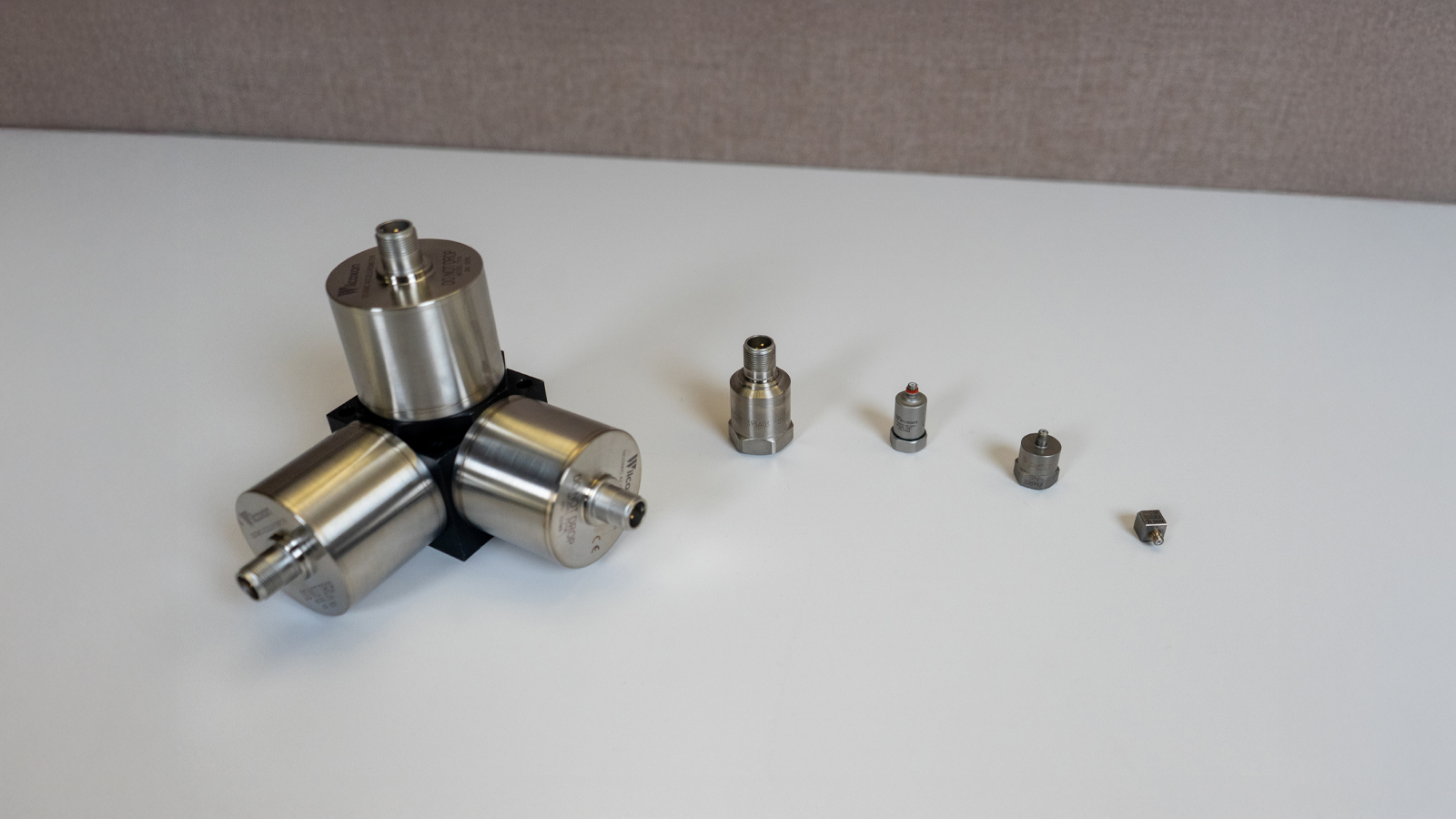

Vibration
- Seismic Accelerometers – Useful for micro-vibrations
- Ultra-low noise floor
- Typical frequency range: 0.1 Hz to 400 Hz
- Medium Sensitivity Accelerometers – General vibration sensing
- Low noise floor
- Typical frequency range: 1 Hz to 2 kHz
- Lightweight Accelerometers – Measurement on lightweight or fragile items
- Higher vibration capability, higher noise floor
- Typical frequency range: 1 Hz to 10 kHz
- Triaxial Measurement Options
- Combination of three accelerometers
- Triaxial geophone, velocity sensor

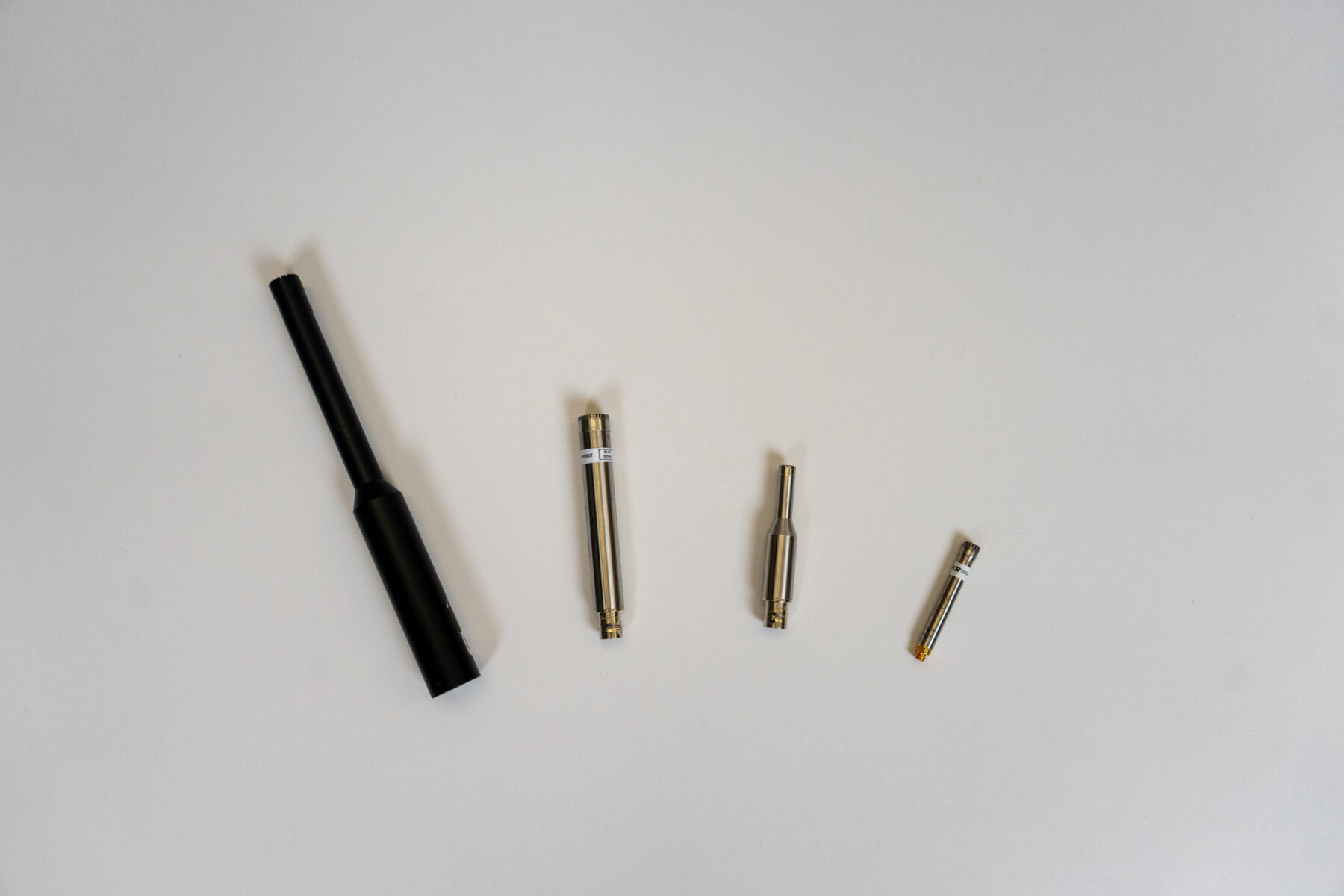

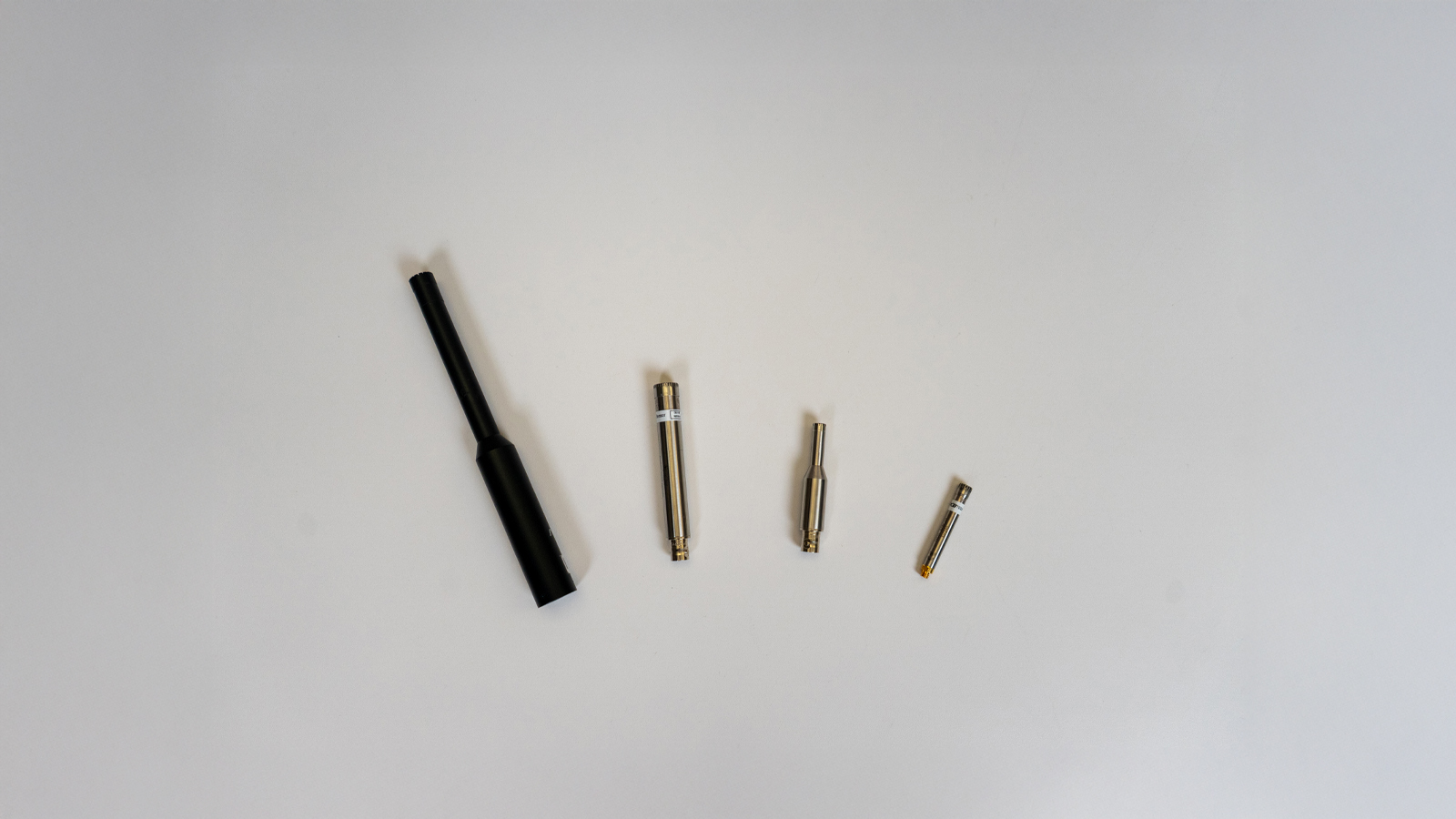

Sound
- ½” Condenser Microphones – General sound measurements
- Low noise floor
- Sound pressure limit near 120 dB
- Typical frequency range: 5 Hz to 20 kHz
- ¼” Condenser Microphones – High sound level or ultrasonic measurements
- Slightly higher noise floor
- Sound pressure limit near 140 dB
- Typical frequency range: 10 Hz to 100 kHz
- Hydrophone – Underwater measurements
- Use in water with moderate sensitivity, use in air with low sensitivity
- Typical frequency range: 1 Hz to 100 kHz

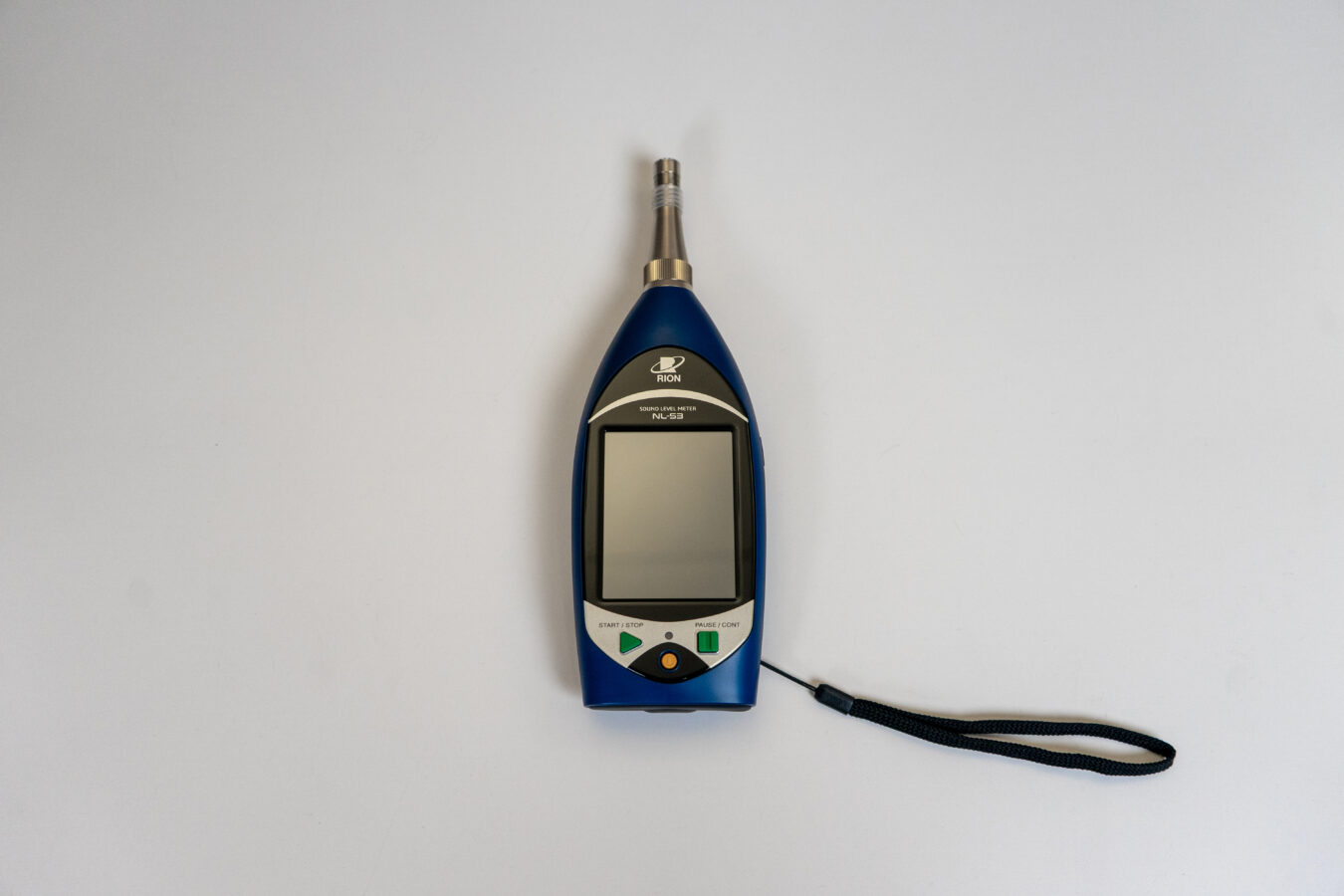

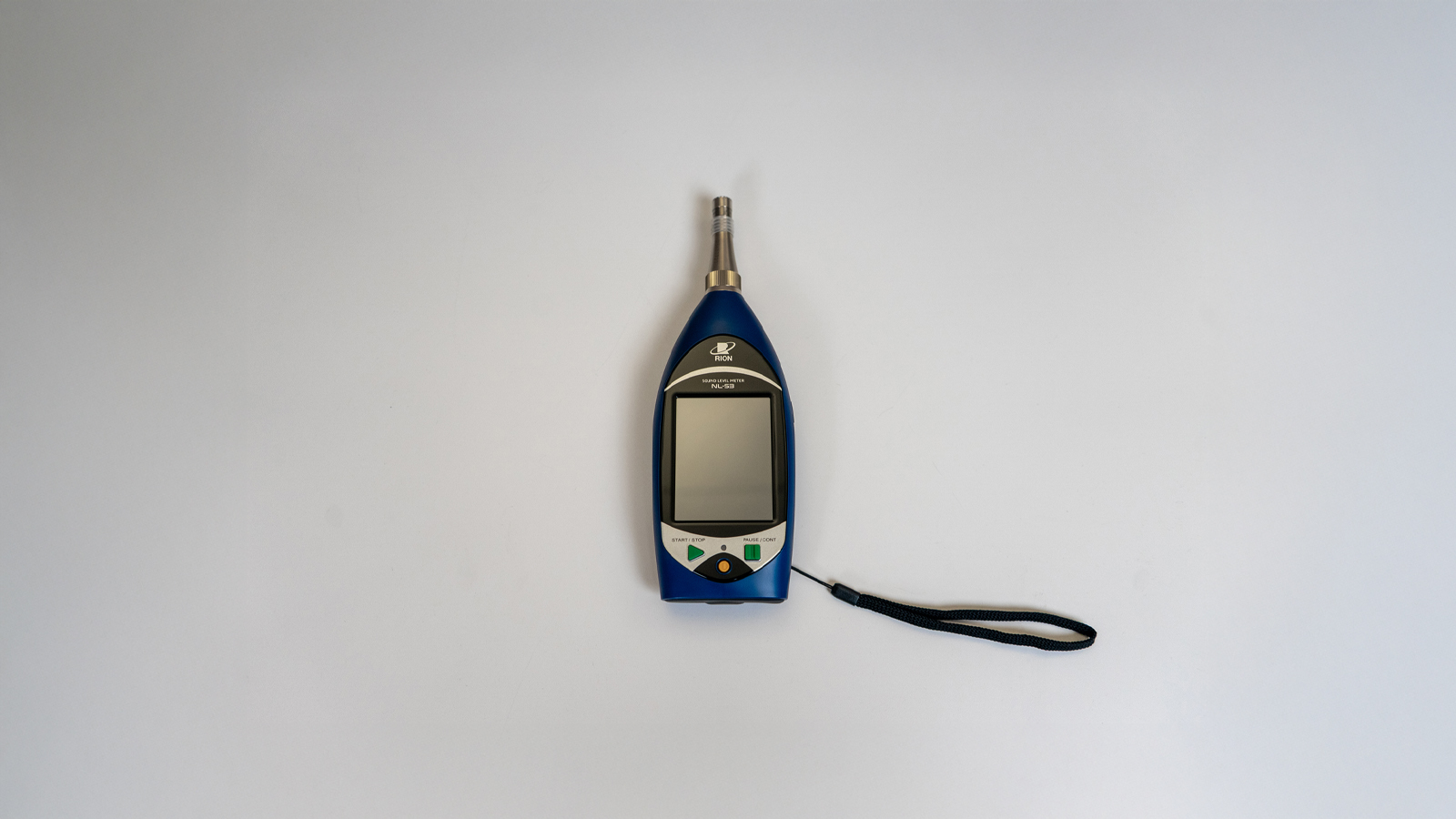

Class 1 Compliant Sound Level Meter
- ANSI S1.4 Type 1 compliance
- IEC 61672 Class 1 compliance
- Frequency range: 12.5 Hz to 20 kHz
Dust & Air Quality
For projects that also require air quality and dust monitoring, Acentech partners with Environmental Health & Engineering (EH&E) to offer a comprehensive, integrated solution. With over a decade of collaboration, our partnership delivers real-time monitoring programs that seamlessly incorporate project management, stakeholder communication, data analysis, and reporting.
Monitoring Capabilities
Signal Processing & Alerting
- Continuous and/or interval-based monitoring
- Fully configurable for spectral (FFT, 1/3 or 1/1 octave bands), overall, and peak particle levels
- Selectable metrics, including Leq, Lmax, Lmin, Peak-Hold, and Statistics
- Customizable thresholds and notification logic, including timeouts and blackout periods
- Real-time event detection and logging
- Alarms sent with SMS and/or email
- Continuous, triggered, or scheduled audio recordings
- Sound source classification (coming soon)
Data Access and Streaming
- Noise and vibration data streams in real-time to our website
- Web-based dashboards with secure login and custom displays
- Mobile interfaces for access in the field
- Complete event log available in the web interface
- Condensed datasets available through the web interface
- Raw datasets archived for later use
System Specifications
Power Options
- Line power
- 120 VAC power, < 30W
- Available battery backup
- Alternative power
- Solar customization where appropriate
- Standalone battery options
Connectivity
- LTE cellular (4G/5G)
- Wi-Fi
- Ethernet

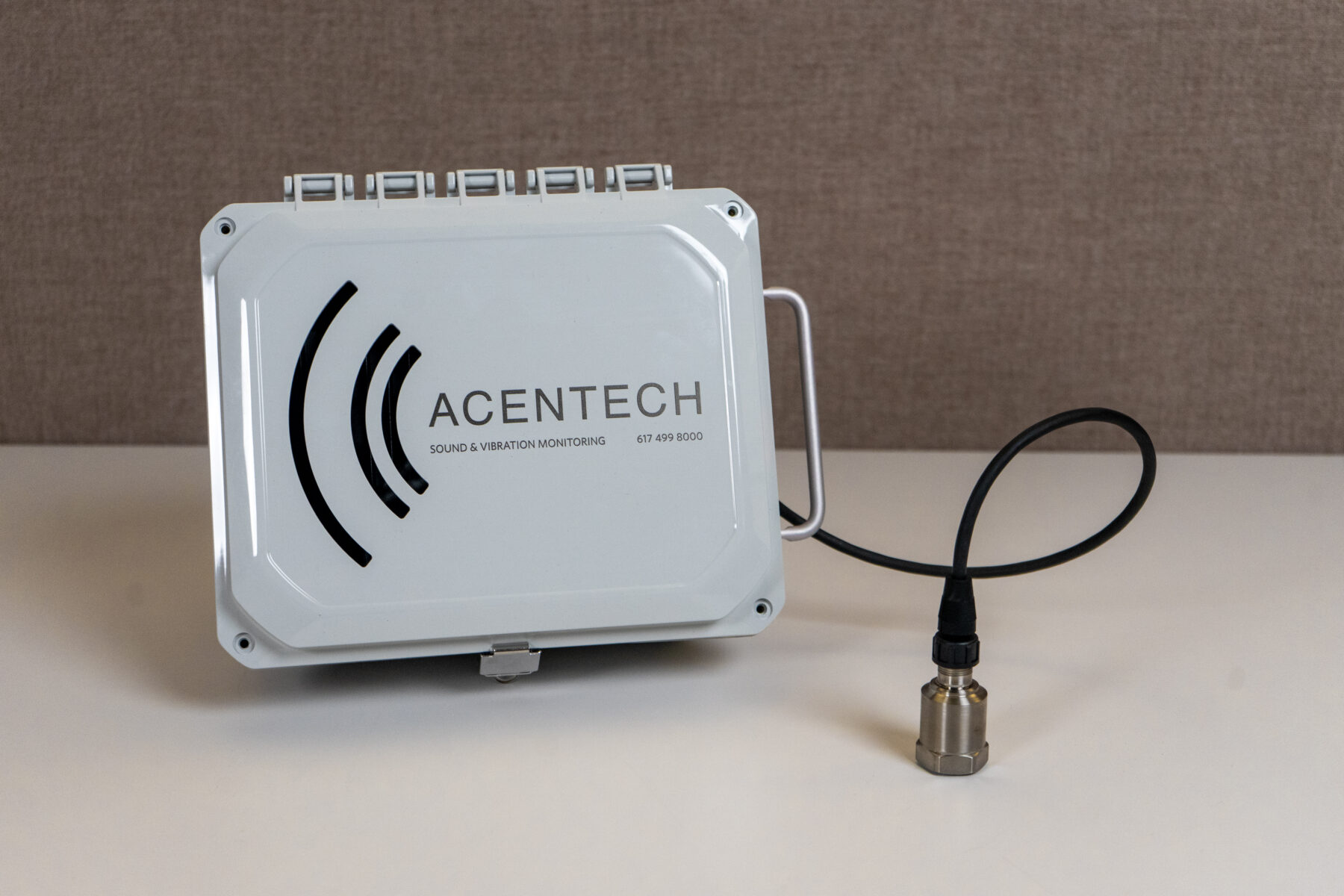

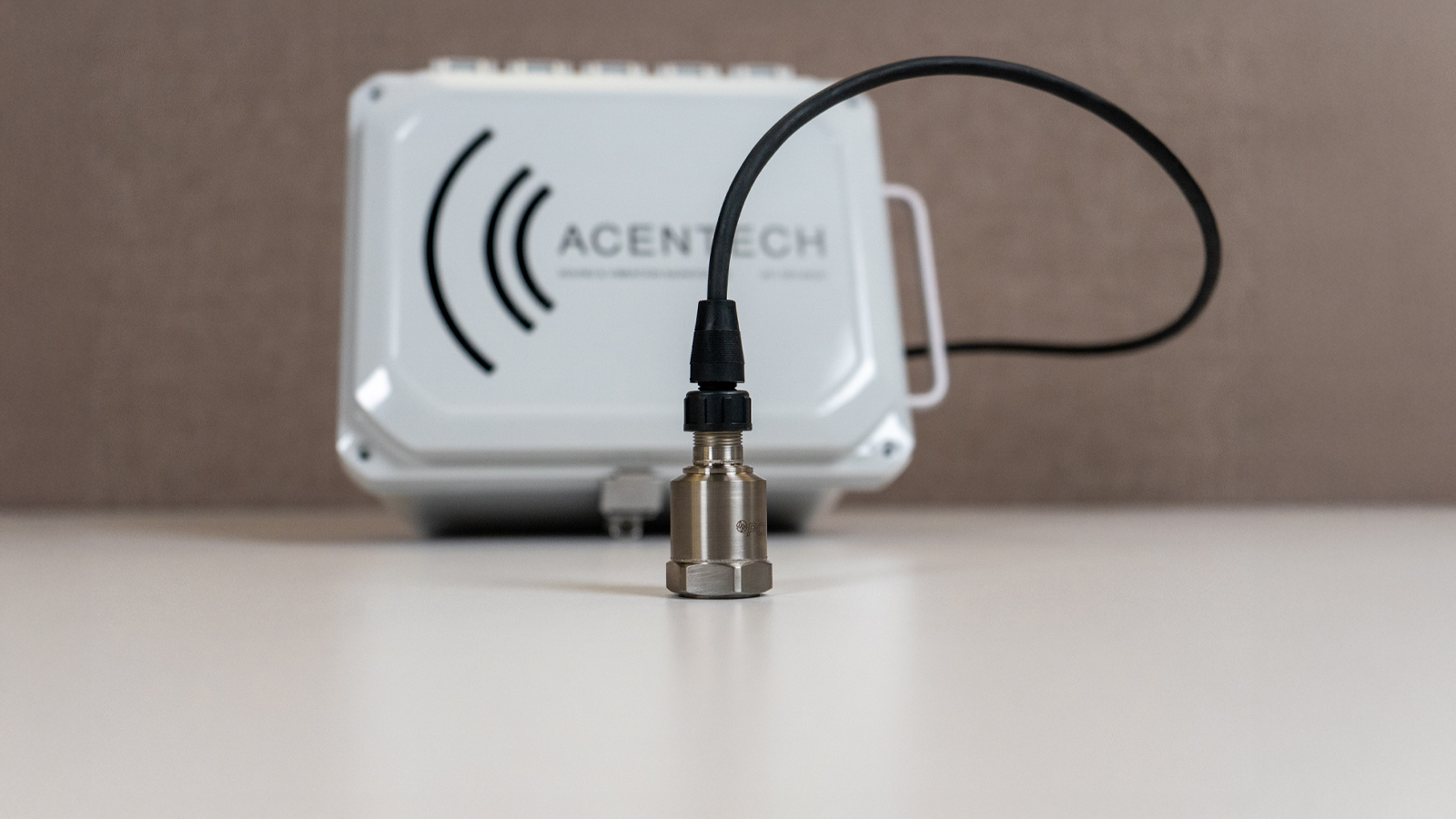

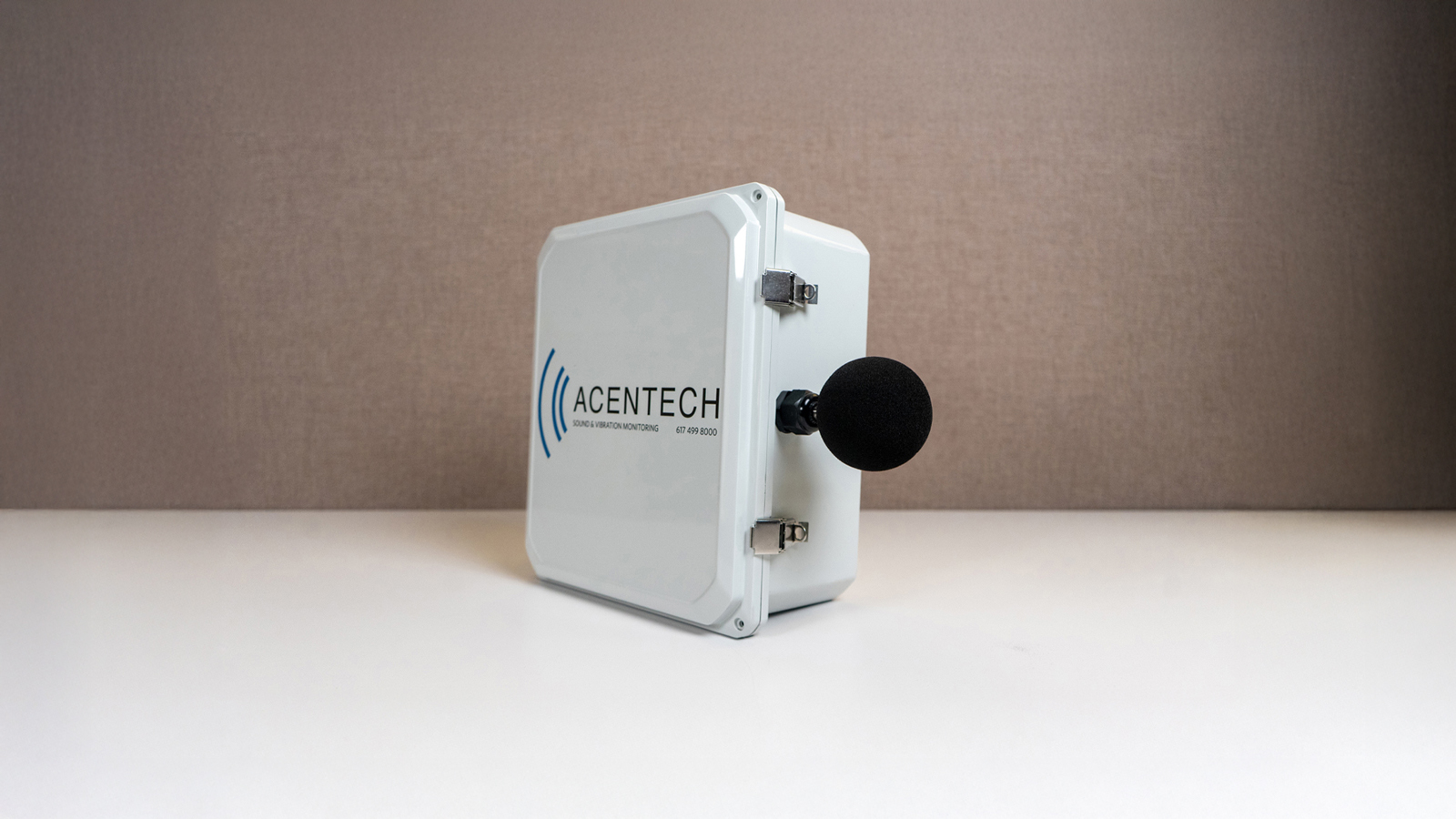

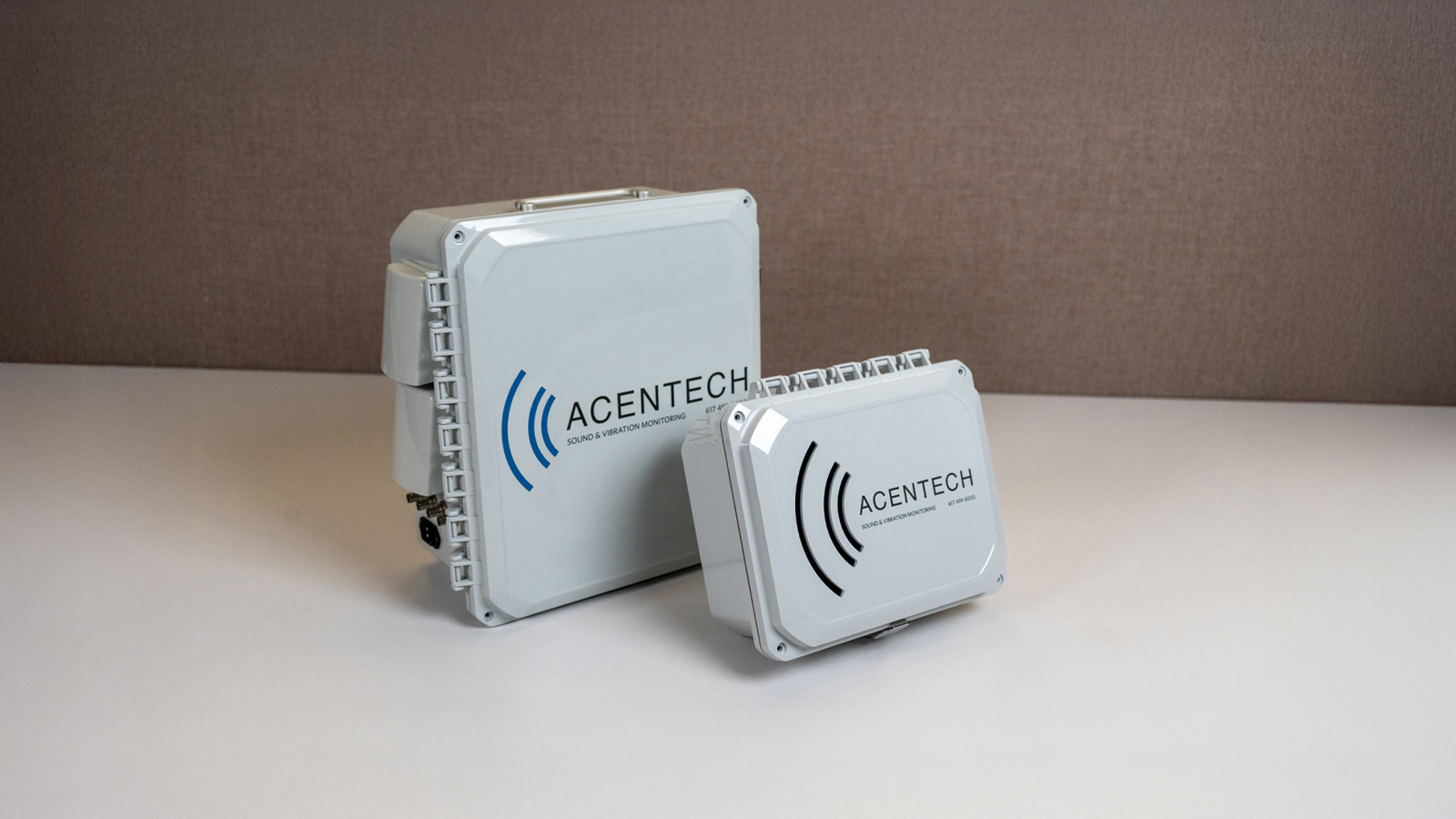

Enclosures
- Outdoor
- NEMA-rated, water resistant enclosures
- Pole mountable
- Indoor
- Pole or wall mountable
- Lightweight portable kits for rapid deployment
Let’s Develop Your Monitoring Solution
Whether you’re protecting a delicate instrument, meeting required noise and vibration thresholds, or curating irreplaceable works of art, Acentech has the systems and expertise to deliver. Contact our team to start customizing your monitoring program. Visit our case studies page to hear what our client’s have to say about our remote noise and vibration monitoring services.
